特 点 Features

● 常规通用。General purpose.

● 结构紧凑，体积小，性价比高。

Compact structure, small size, high cost performance.

应 用 Application

● 抑制沿电源线传输的工业无线电干扰。

Suppress industrial radio interference transmitted

along the power line.

性能指标 Characteristcs

额定电压Rated voltage	440/250VAC
工作频率 Operating Frequency	DC~60Hz
额定电流Rated curren	5~200A@40℃max.
耐压试验 (60s) Test Voltage	1500VDC（线-线Line - line） 2250VDC（线-地Line - ground） 3000VDC/2S
气候类别 Climate category	40/100/21

产品型号表 Filter Table

型号 model	接线方式：输入输出			额定电流A Rated curren	接地电容量nF Grounding capacity	放电电阻KΩ resistance	电路图Fig. Circuit diagram	外形尺寸Fig. Outline Drawing
YX-311-5-	TT	WW		5	6.8		1	1/2
YX-311-10-	TT	WW		10	6.8		1	1/2
YX-311-16-			SS	16	6.8		2	3
YX-311-20-			SS	20	6.8		2	3
YX-311-25-			SS	25	6.8		2	3
YX-311-30-			SS	30	6.8		2	3
YX-311-50-			SS	50	6.8		2	4
YX-311-100-			SS	100	50	680	3	5
YX-311-150-			SS	150	50	680	3	5
YX-311-200-			SS	200	50	680	3	6

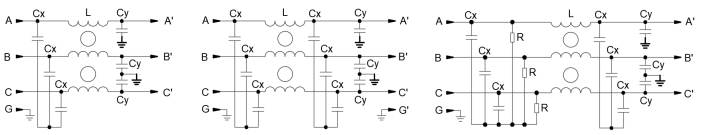

电原理图Typical Circuit Diagram

Fig.1 Fig.2 Fig.3

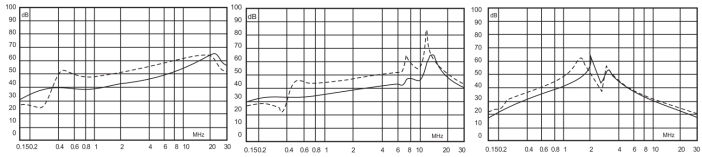

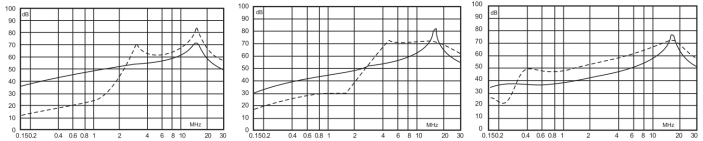

插入损耗 Insertion LOSS in dB (50Ω测量系统，IEC/CISPR No.17号出版物)

5A 10A 16A~25A

30A 50A 100A~200A

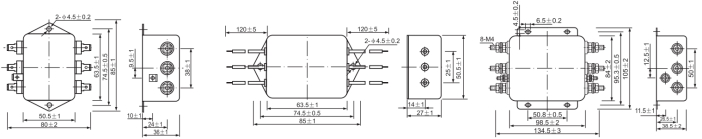

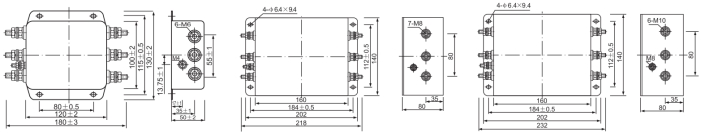

外形尺寸图 Outline Drawing : mm

Fig.1 (5~10A) Fig.2 (5~10A) Fig.3 (16~30A)

Fig.4 (50A) Fig.5 (100~150A) Fig.6 (200A)
